CARBON BRICK-THE SAFEGUARD FOR CORROSION PROTECTION
DESCRIPTION:

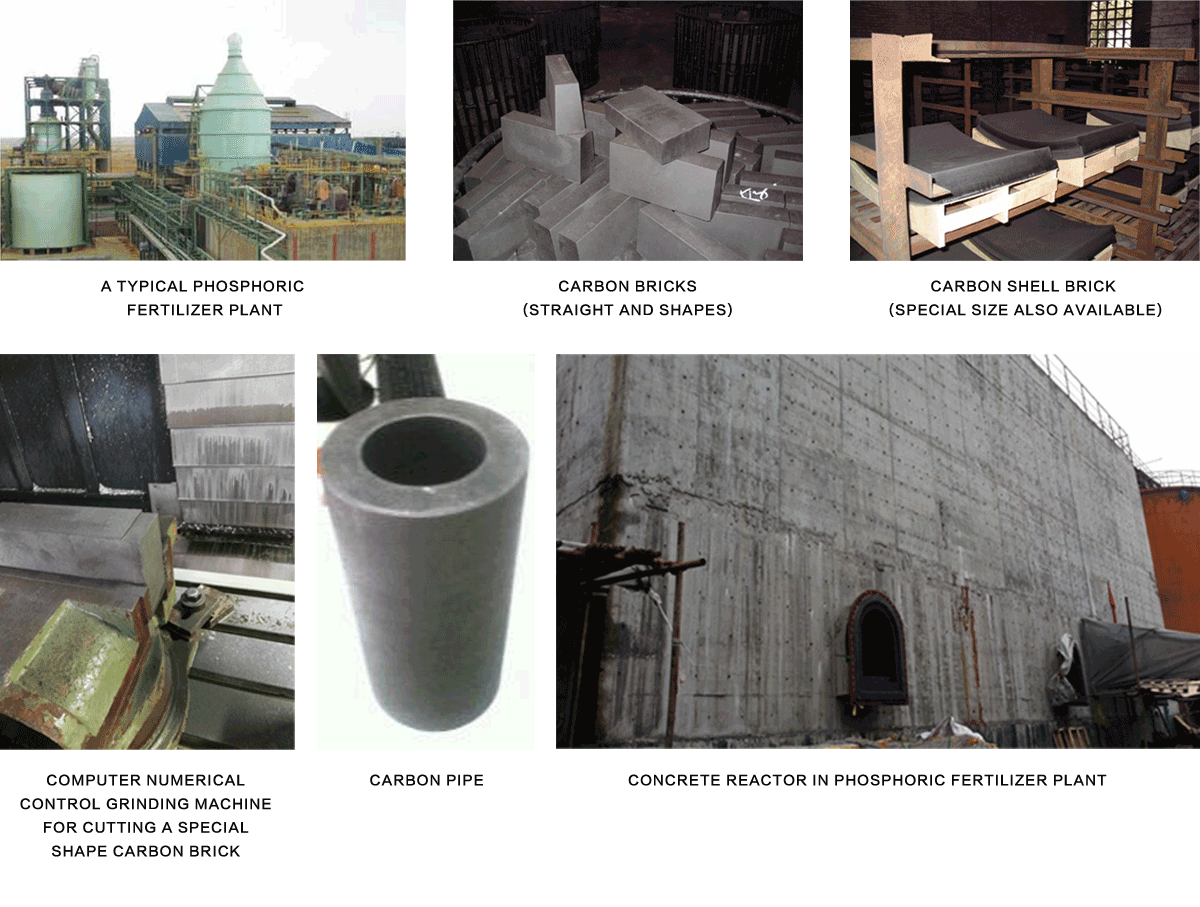

Carbon brick & tile lining have an excellent mechanical strength, good thermal resistance and stability to stand up the temperature changes, and carbon is an ideal material for lining process vessels where severe chemical or physical operating conditions are encountered. Carbon brick lining are used mainly in phosphoric fertilizer production due to their ability for protection of the rubber membrane against mechanical abrasion.
APPLLCATLON:

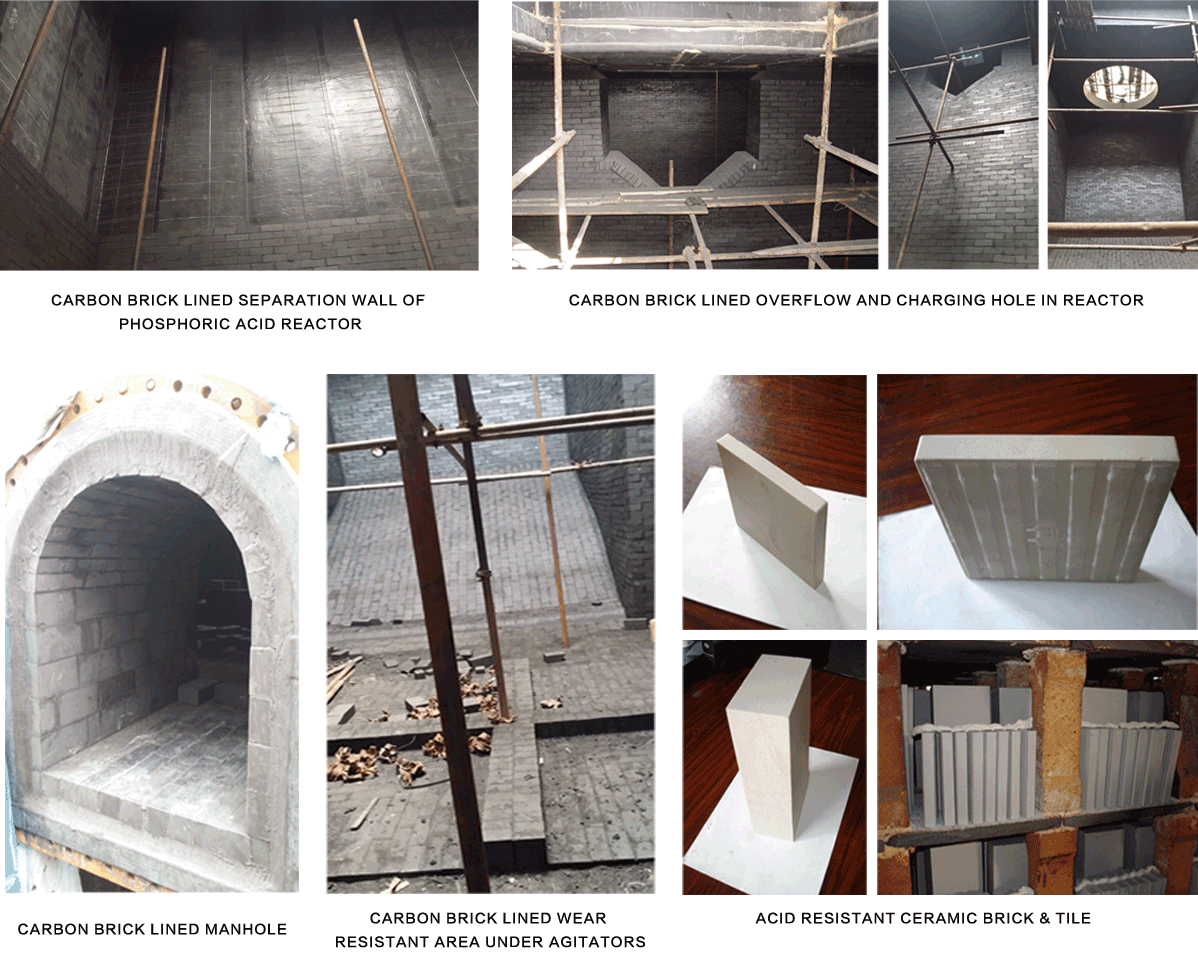

● Reactor and stirring vessels, digestion tank, H3PO4 process equipment, piping, raw gas ducts, corrosion resistant floor, bath, boilers,
● All kinds of acid proof and chemically resistant lining.
● Brick lined pickling lines, acid-washing launder in stainless steel pickling plant
● Alkaline pulp digesters in pulp and paper industry
● Humidifying towers in sulfuric acid manufacturing plant
● Benzene and naphthalene washing plant
● The lining of quench tower
● Slurry tank
● NPK & caustic soda, fluorine, chlorine concentrations.
● The lining of hydrochloric acid storage can in railway industry
● The lining of desulfurizing tower and chimney in power plant
The available brIck sIze:
● Shapes and sizes vary, including straights, wedges and arches● Standard and Common Sizes we usually offered as following table:
● Special shapes are also available upon customer’s requirement.
Standard Size (mm)
250x124x100
250x124x80
250x124x65
250x124x50
250x124x40
250x124x30
250x120x80
250x120x65
250x120x63
250x120x50
250x120x40
250x120x30
240x120x80
240x120x65
240x120x64
240x120x63
/
/
240x115x110
240x115x100
240x115x95
240x115x80
240x115x75
240x115x65
240x115x63
240x115x50
240x115x40
240x115x30
/
/
240x114x110
240x114x100
240x114x95
240x114x80
240x114x75
240x114x65
240x114x63
240x114x50
240x114x40
240x114x30
/
/
230x115x100
230x115x80
230x115x65
230x115x63
230x115x62
230x115x50
230x115x40
230x115x30
/
/
/
/
230x114x65
230x114x63
230x114x50
230x114x40
230x114x30
/
230x113x65
230x113x63
230x113x50
230x113x40
230x113x30
/
Common Size (mm)
250x124x20
250x120x20
240x120x20
240x115x20
240x114x20
230x115x20
230x115x18
230x114x20
230x114x18
230x113x20
230x113x18
150x75x15
Carbon tube and pipe with all kinds of length and internal/external diameters.
/
Special Size (available upon customer's requirements)
Since 1998, with many years successful supply experience with Brazil, Bulgaria, France, Indonesia, Jordan, Japan, Korea, Morocco, Spain, Sweden，South Africa, Tunisia and Domestic phosphoric fertilizer companies, we are very confident to provide our excellent quality corrosion protection carbon brick to satisfy your esteemed company. Our one desire is to serve you faithfully. More is humanly impossible. Less, we will no tolerate.
